SMA UPC APC Fiber Optic Ferrule Ceramic Ferrules For Stud Welding

Place of Origin China
Nama merek KCO, Kocent Optec Limited
Sertifikasi ISO9001
Model Number KCO-ferrule
Minimum Order Quantity Negotiation
Harga Negotiation
Packaging Details paper bag, carton box
Delivery Time 2~5 days after get payment
Payment Terms T/T, Western Union, L/C
Supply Ability 50,000 pcs/ month

Hubungi saya untuk sampel gratis dan kupon.

ada apa:0086 18588475571

Wechat wechat: 0086 18588475571

Skype: sales10@aixton.com

Jika Anda memiliki masalah, kami menyediakan bantuan online 24 jam.

x
Detail produk
P/N KCO-H01B Ferrule 1.25mm, 2.5mm
Fiber mode Single mode, multimode Input voltage 220 VAC 50 Hz, or 110 VAC 50 Hz
Temperature 0~300 °C Ferrule numer 100 ferrules
Cahaya Tinggi

fiber optic cutting machine

,

optical fiber polishing machine

Tinggalkan pesan
Deskripsi Produk

SMA UPC APC Fiber Optic Ferrule Ceramic Ferrules For Stud Welding





Quick Detail:

- Name: Fiber Ferrule

- Mode: Singlemode Multimode

- Material: Ceramic/Zirconia, Metal

- Ferrule End-face: UPC APC

- Type: Standard, Angle, Step

- Outer Diameter : φ2.5mm(FC/SC/ST), φ1.25mm(LC/MU)



Description:

- Fiber optic ceramic ferrules are important component of optical connectors and fiber optic patch cord.

- Low insertion loss

- Strong interchanging capability

- UL94V-O and ROHS standard

- High resistance of corrosive



Features:

- Good concentricity and size precision

- High strength and endurability, good anti-aging performance

- Low insertion loss and high return loss and pull out performance

- Wear-resistance

- Flange: SUS303, Brass, Gild (optional)

- Approved by RoHS, ISO9001

- Customized specifications welcomed



Applications:

- Applied for fiber connector/pigtail/patch cord

- Data network communication

- CATV LAN & WAN

- Telecommunication

- Military data network communication

- Optical fiber access networks

- Optical fiber CATV

- Optical fiber test equipements

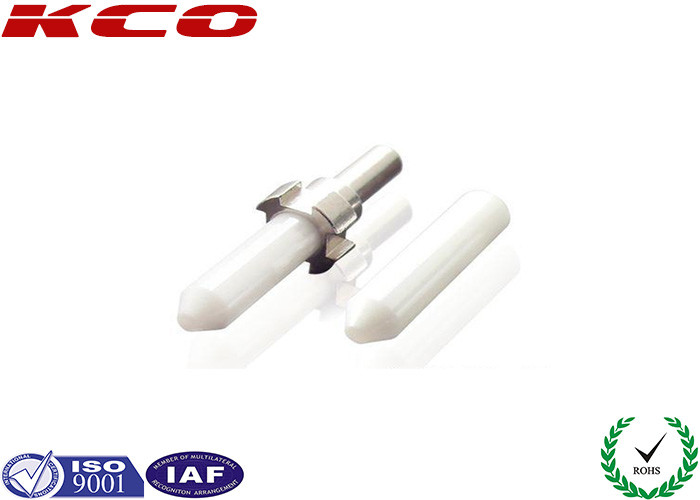

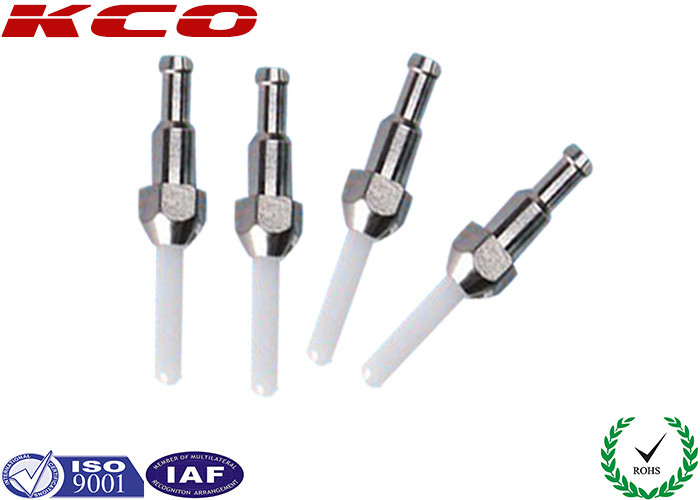

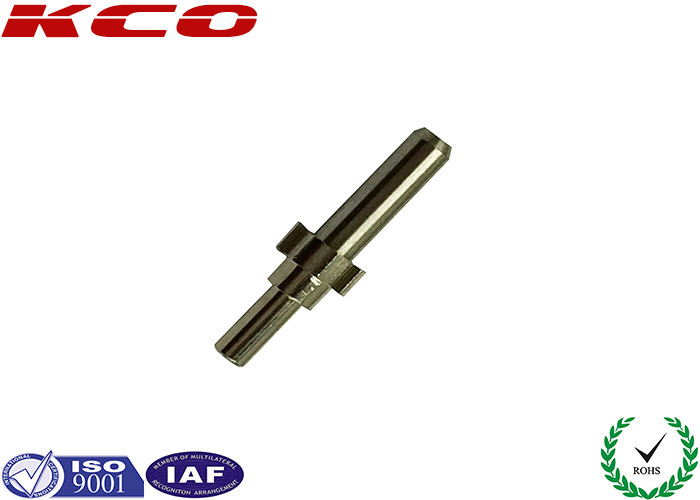

Product pictures:

SMA UPC APC Fiber Optic Ferrule Ceramic Ferrules For Stud Welding 0

Specifications:

Type SC Type LC Type MU Type APC Type Customized
Outside Diameter(mm) Single Mode 2.499±0.0005 1.249±0.0005 1.249±0.0005 2.4990±0.0005 φd±0.0005
Multi Mode 2.499±0.002 1.249±0.001
Inside Diameter(mm) Single Mode d0+0.001 d0+0.001 d0+0.001 d0+0.001 d0+0.001
Multi Mode d0+0.002 0.1260+0.004
Concentricity(μm) Single Mode ≤1.0 ≤1.0 ≤1.0 ≤1.0 user-defined
Multi Mode ≤4.0 ≤4.0
Length(mm) Single Mode 10.5±0.05 6.40+0.1 6.5±0.05 10.5±0.05 L±0.05



Parameter Unit FC,LC,SC ST,MU MTRJ,MPO
SM MM SM MM SM MM
PC UPC APC PC PC UPC PC PC UPC PC
Insertion loss(typical) dB ≤0.3 ≤0.2 ≤0.3 ≤0.2 ≤0.3 ≤0.2 ≤0.2 ≤0.3 ≤0.2 ≤0.2
Return loss dB ≥45 ≥50 ≥60 ≥30 ≥45 ≥50 ≥30 ≥45 ≥50 ≥35
Operating wavelength nm 1310,1510 1310,1510 1310,1510
Exchangeability dB ≤0.2 ≤0.2 ≤0.2
Vibration dB ≤0.2 ≤0.2 ≤0.2
Operating temperature °C -40~+75 -40~+75 -40~+75
Storage temperature °C -45~+85 -45~+85 -45~+85
Cable diameter mm Φ3.0,Φ2.0,Φ0.9 Φ3.0,Φ2.0,Φ0.9 Φ3.0,Φ2.0,Φ0.9





























Package:

SMA UPC APC Fiber Optic Ferrule Ceramic Ferrules For Stud Welding 1

Order information:

Mode Type ID Flange
S: Single mode C: (SC, FC, ST, E2000)/PC 5: 125um F: With flange
M: Multi-mode L: LC/PC 6: 126um N:No flange
  D: DIN/PC 7: 127um
  U: MU/PC
  CA:(SC, FC, E2000)/APC
  DA: DIN/APC
  CAS: (SC, FC)/APC Step type



OEM/ODM Service:

We can according to your request to produce all type of standard fiber optic ferrule and non standard fiber optic ferrule. We use high quality of raw material to warranty that each ferrule can meet your most stringent requirements. Please call us or send e-mail to us with your specification to discuss with us.
