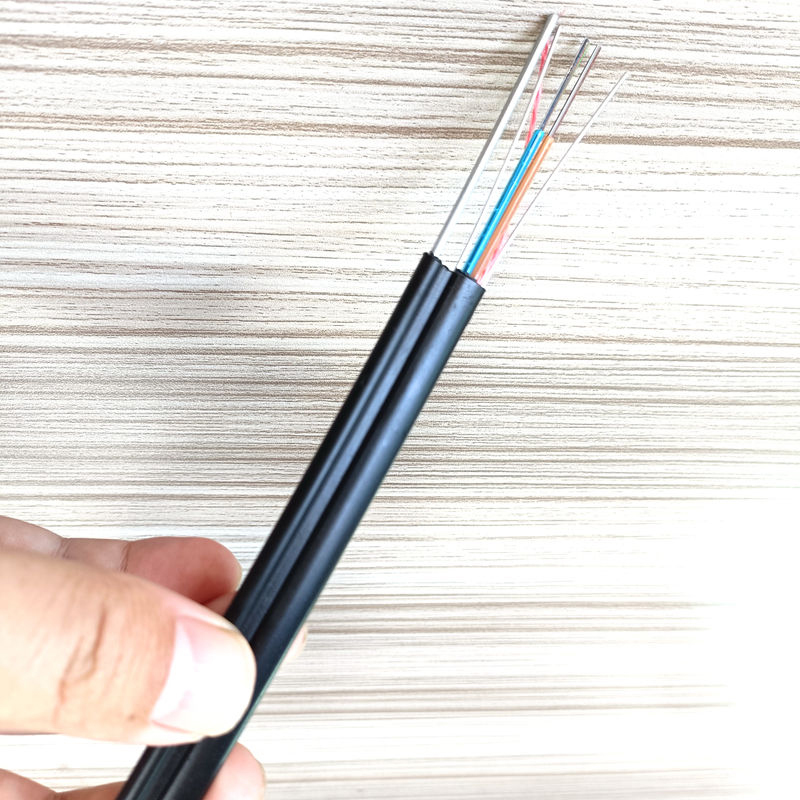

GYTC8S 8Fig Outdoor Cable Stranded Loose Tube Self-supporting Aerial Cables

  • GYTC8S 8Fig Outdoor Cable Stranded Loose Tube Self-supporting Aerial Cables
  • GYTC8S 8Fig Outdoor Cable Stranded Loose Tube Self-supporting Aerial Cables
  • GYTC8S 8Fig Outdoor Cable Stranded Loose Tube Self-supporting Aerial Cables
Tempat asal Guangdong, Cina
Nama merek KCO, Kocent Optec Limited
Sertifikasi ISO9001, RoHS
Nomor model KCO-GYTC8S
Kuantitas min Order Perundingan
Harga negotiable
Kemasan rincian gulungan kayu, palet kayu
Waktu pengiriman 3 ~ 5 hari setelah menerima pembayaran
Syarat-syarat pembayaran Western Union, T/T, l/c
Menyediakan kemampuan 10.000 km/ bulan

Hubungi saya untuk sampel gratis dan kupon.

ada apa:0086 18588475571

Wechat wechat: 0086 18588475571

Skype: sales10@aixton.com

Jika Anda memiliki masalah, kami menyediakan bantuan online 24 jam.

x
Detail produk
Bahan PE, LDPE, HDPE Nama Kabel serat optik luar ruangan
Panjang 1km~5km setiap putaran Jenis kabel Gytc8s
Serat Mode tunggal, multimode Core 2 core hingga 144 core
Warna Hitam Diameter 9.0mm
Nomor bagian GYTC8S-xA1
Anda dapat mencentang produk yang Anda butuhkan dan berkomunikasi dengan kami di papan pesan.
Tinggalkan pesan
Deskripsi Produk

GYTC8S 8Fig Outdoor Cable Stranded Loose Tube Self-supporting Aerial Cables

What is GYTC8S fiber optic cable?

GYTC8S: Outdoor Cable Stranded Loose Tube Self-supporting Aerial Cables

GYTC8S fiber optic cable is a typical self-supporting outdoor fiber optical cable. The mental strength member is made up of stranded wires as thesupporting part are completed with a PE sheath to be figure 8 structures. Corrugated steel tape armored and PE outer sheath providing crush resistance.

It's suitable for installation in aerial, used for long distance and LAN communication systems.

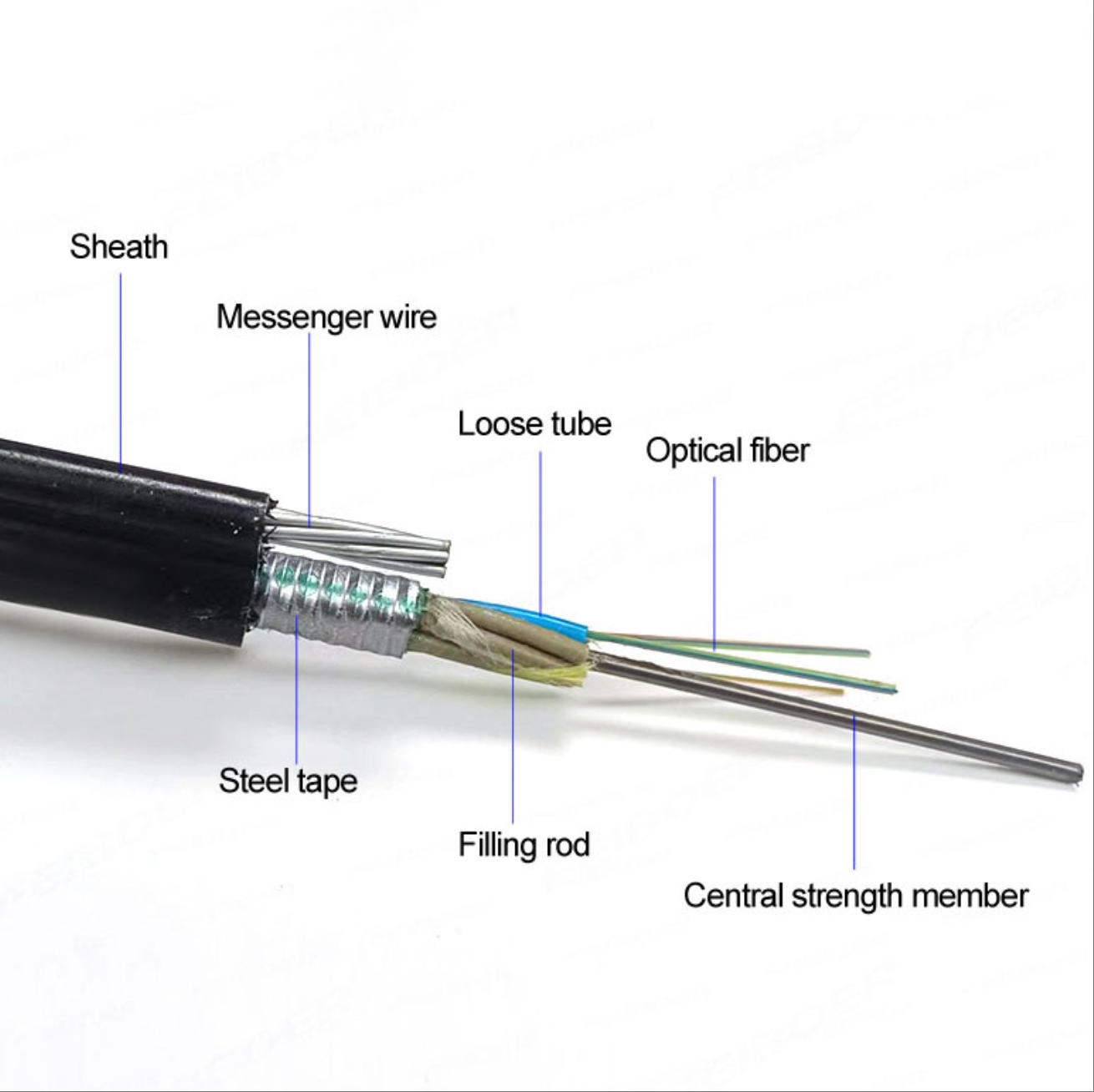

Construction:

GYTC8S 8Fig Outdoor Cable Stranded Loose Tube Self-supporting Aerial Cables 0

Feature:

  • Small cable diameter, figure 8 structure
  • Self-supporting stranded wires, easily to install
  • Excellent mechanical and environmental performance
  • Low dispersion and attenuation
  • Steel-wire strength member ensures tensile strength
  • Corrugated steel tape and the PE outer sheath ensure crush resistance
  • Water blocking system to improve the water proof ability

Applications:

  • Adopted to Outdoor distribution.
  • Suitable for aerial.
  • Long distance and local area network communication.

Fiber characteristic:

Fiber style Unit MM
condition nm 850/1300
attenuation dB/km ≤3.0/1.0


----
Dispersion 1550nm Ps/(nm*km) Dispersion

1625nm Ps/(nm*km) 　
Bandwidth 850nm MHZ.KM Bandwidth

1300nm MHZ.KM 　
Zero dispersion wavelength nm ≧ 1295, ≤1320
Zero dispersion slope nm ----
PMD Maximum Individual Fiber
≤0.11
PMD Design Link Value Ps(nm2*km) ----
Fibre cutoff wavelength λc nm ----
Cable cutoff wavelength λcc nm ----
MFD 1310nm um ----

1550nm um ----
Numerical Aperture(NA)
0.200+/-0.015
Step(mean of bidirectional measurement) dB ≤0.10
Irregularities over fiber length and point dB ≤0.10

Fiber color:

1 2 3 4 5 6
Blue Orange Green Brown Grey White
7 8 9 10 11 12
Red Black Yellow Violet Pink Aqua

OEM/ODM Service:

If you want to show your own brand LOGO on the goods such as cable, package bag, label or any where. It is no any problem. Our OEM and ODM service is always ready to do it.

Packing:

According to Stardard Export Packing.

Carton box, wooden box, wooden pallet.

Shipping:

  • International express such as UPS, TNT, DHL, etc
  • Internatioal air: CA, AA, EA, etc
  • By sea
