GYTC8S Figure 8 Self-supporting Aerial Fiber Optic Cable with Corrosion Resistant PE Sheath for Outdoor Installation

  • GYTC8S Figure 8 Self-supporting Aerial Fiber Optic Cable with Corrosion Resistant PE Sheath for Outdoor Installation
  • GYTC8S Figure 8 Self-supporting Aerial Fiber Optic Cable with Corrosion Resistant PE Sheath for Outdoor Installation
  • GYTC8S Figure 8 Self-supporting Aerial Fiber Optic Cable with Corrosion Resistant PE Sheath for Outdoor Installation
Tempat asal Guangdong, Cina
Nama merek KCO, Kocent Optec Limited
Sertifikasi ISO9001, RoHS
Nomor model KCO-GYTC8S
Kuantitas min Order Perundingan
Harga negotiable
Kemasan rincian gulungan kayu, palet kayu
Waktu pengiriman 3 ~ 5 hari setelah menerima pembayaran
Syarat-syarat pembayaran Western Union, T/T, l/c
Menyediakan kemampuan 10.000 km/ bulan

Hubungi saya untuk sampel gratis dan kupon.

ada apa:0086 18588475571

Wechat wechat: 0086 18588475571

Skype: sales10@aixton.com

Jika Anda memiliki masalah, kami menyediakan bantuan online 24 jam.

x
Detail produk
Bahan PE, LDPE, HDPE Nama Kabel serat optik luar ruangan
Panjang 1km~5km setiap putaran Jenis kabel Gytc8s
Serat Mode tunggal, multimode Core 2 core hingga 144 core
Warna Hitam Diameter 9.0mm
Nomor bagian GYTC8S-xA1
Menyoroti

Figure 8 Aerial Fiber Optic Cable

,

Self-supporting Fiber Optic Cable

,

Corrosion Resistant Outdoor Fiber Optic Cable
Tinggalkan pesan
Deskripsi Produk
GYTC8S Figure 8 Self-supporting Aerial Fiber Optic Cable
Product Description

- The GYFTC8Y Fiber Optic Cable fiber is 250µm, the loose tube is made of high modulus plastic, which is filled with waterproof compound.

- Self-supported figure 8 optical cable with fibers placed in jelly filled loose buffer tube stranded around dielectric central member.

- The cable core is protected with jelly or water-blocking material to prevent water intrusion and migration. This set unit and galvanized steel messenger are covered with polyethylene outer sheath.

- The fibers, either of single-mode or multimode type, are placed in a loose tube made of high modulus plastic.

- The tubes inside are filled with a water-resistant filling compound.

- A center member locates in the center of core as a non- metallic strength member.

- The tubes (and fillers) are stranded around the strength member into a compact and circular cable core.

- Water blocking yarn and water blocking tape to protect cable from water. This part of cable accompanied with the stranded wires as the supporting part are completed with a polyethylene (PE) sheath to be figure 8 structures.

Standard

- Complies to ITU-T G.652.D, IEC 60793, IEC 60794, and related TIA/ EIA standards.

Applications
- GYFTC8Y Cable is designed for outdoor/aerial applications, with high tensile strength, crush resistance and suitable bending radius.

Fiber Characteristics
Fiber Style Unit MM
Condition nm 850/1300
Attenuation dB/km ≤3.0/1.0
Dispersion (1550nm) Ps/(nm*km) Dispersion
Dispersion (1625nm) Ps/(nm*km)
Bandwidth (850nm) MHZ.KM Bandwidth
Bandwidth (1300nm) MHZ.KM
Zero dispersion wavelength nm ≧ 1295, ≤1320
Zero dispersion slope nm
PMD Maximum Individual Fiber
≤0.11
Fiber Color Code
  • 1. Blue
  • 2. Orange
  • 3. Green
  • 4. Brown
  • 5. Grey
  • 6. White
  • 7. Red
  • 8. Black
  • 9. Yellow
  • 10. Violet
  • 11. Pink
  • 12. Aqua

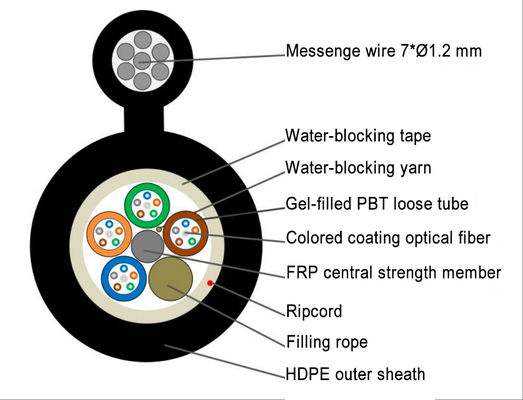

Cable structure
GYTC8S Figure 8 Self-supporting Aerial Fiber Optic Cable with Corrosion Resistant PE Sheath for Outdoor Installation 0
OEM/ODM Service

We offer custom branding options for your cable, packaging, and labels. Our OEM and ODM services can accommodate your specific branding requirements.

Packing

Standard export packing options include carton boxes, wooden boxes, and wooden pallets.

Shipping Options
  • International express (UPS, TNT, DHL)
  • International air freight (CA, AA, EA)
  • Sea freight
