GYTS Direct burial armored outdoor fiber optic cable

  • GYTS Direct burial armored outdoor fiber optic cable
  • GYTS Direct burial armored outdoor fiber optic cable
  • GYTS Direct burial armored outdoor fiber optic cable
  • GYTS Direct burial armored outdoor fiber optic cable
Tempat asal Guangdong, Cina
Nama merek KCO, Kocent Optec Limited
Sertifikasi ISO9001, RoHS
Nomor model KCO-GYXTW-xA1
Kuantitas min Order Perundingan
Harga negotiable
Kemasan rincian gulungan kayu, palet kayu
Waktu pengiriman 3 ~ 5 hari setelah menerima pembayaran
Syarat-syarat pembayaran Western Union, T/T, l/c
Menyediakan kemampuan 10.000 km/ bulan

Hubungi saya untuk sampel gratis dan kupon.

ada apa:0086 18588475571

Wechat wechat: 0086 18588475571

Skype: sales10@aixton.com

Jika Anda memiliki masalah, kami menyediakan bantuan online 24 jam.

x
Detail produk
Bahan PE, LDPE, HDPE Nama Kabel serat optik luar ruangan
Panjang 2km~3km setiap putaran Jenis kabel Gyxtw
Serat Multimode OM2 50/125 Core 2 inti hingga 24 core
Warna Hitam Diameter 7.0mm
Nomor bagian Gyxtw-xa1
Tinggalkan pesan
Deskripsi Produk

GYTS Direct burial armored outdoor fiber optic cable

1. What is GYTS fiber optic cable?

  • GYTS fiber optic cable is a type of outdoor, armored fiber optic cable.
  • It is used for telecommunications that is suitable for duct, aerial, and direct burial installations.
  • Its name indicates it is an outdoor cable (GY), with stranded loose tubes (T), and a corrugated steel tape armoring (S).
  • The steel tape provides enhanced protection against mechanical stress, moisture, and rodents.

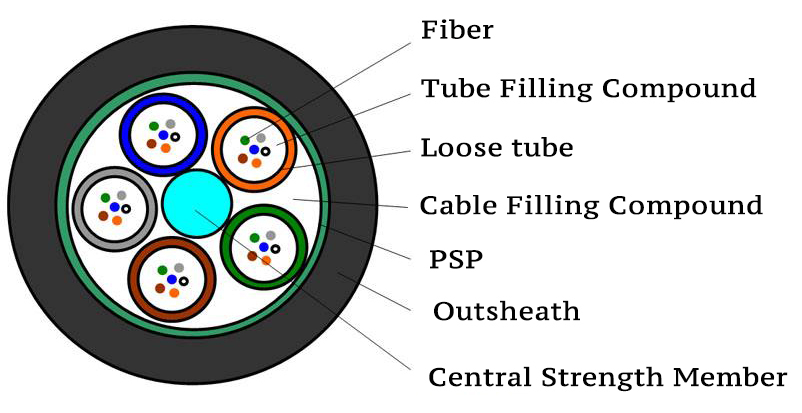

2. Construction:

GYTS Direct burial armored outdoor fiber optic cable 0

3. Characteristics:

  • Good mechanical and temperature performance
  • High strength loose tube that is hydrolysis resistant
  • Special tube filling compound ensure a critical protection of fiber
  • Specially designed compact structure is good at preventing loose tubes from shrinking
  • PE sheath protects cable from ultraviolet radiation
  • The following measures are taken to ensure the cable watertight
  • Steel wire used as the central strength member
  • Loose tube filling compound

4. Standard

  • Complies with Standard YD/T 1155-2001 as well as IEC 60794-1.

5. Cable Mechanical Characteristic

Fiber number 2～30 32～36 38～60 62～72 74～84
Loose tube dia. mm 1.9 1.9 2.3 2.3 2.3
Tube number 5 6 5 6 7
Tube fiber number 6 6 12 12 12
Cable Dia. mm 9.5 10.6 11.1 11.8 12.5
Cable weight kg/km 95 130 135 160 165
Fiber number 86～96 98～108 110～120 122～132 134～144
Loose tube dia. mm 2.3 2.3 2.3 2.3 2.3
Tube number 8 9 10 11 12
Tube fiber number 12 12 12 12 12
Cable Dia. mm 13.2 13.9 14.6 15.4 16.1
Cable weight kg/km 180 200 215 235 250

6. Fiber characteristic

Fiber style Unit MM
Condition nm 850/1300
Attenuation dB/km ≤3.0/1.0


----
Dispersion 1550nm Ps/(nm*km) Dispersion

1625nm Ps/(nm*km) 　
Bandwidth 850nm MHZ.KM Bandwidth

1300nm MHZ.KM 　
Zero dispersion wavelength nm ≧ 1295, ≤1320
Zero dispersion slope nm ----
PMD Maximum Individual Fiber
≤0.11
PMD Design Link Value Ps(nm2*km) ----
Fibre cutoff wavelength λc nm ----
Cable cutoff wavelength λcc nm ----
MFD 1310nm um ----

1550nm um ----
Numerical Aperture(NA)
0.200+/-0.015
Step(mean of bidirectional measurement) dB ≤0.10
Irregularities over fiber length and point dB ≤0.10

7. Fiber color

1 2 3 4 5 6
Blue Orange Green Brown Grey White
7 8 9 10 11 12
Red Black Yellow Violet Pink Aqua

OEM/ODM Service:

If you want to show your own brand LOGO on the goods such as cable, package bag, label or any where. It is no any problem. Our OEM and ODM service is always ready to do it.

Packing:

According to Stardard Export Packing.

Carton box, wooden box, wooden pallet.

Shipping:

  • International express such as UPS, TNT, DHL, etc
  • Internatioal air: CA, AA, EA, etc
  • By sea
