GYTA Loose Tube Armored Outdoor Fiber Optical Cable For Duct

  • GYTA Loose Tube Armored Outdoor Fiber Optical Cable For Duct
  • GYTA Loose Tube Armored Outdoor Fiber Optical Cable For Duct
  • GYTA Loose Tube Armored Outdoor Fiber Optical Cable For Duct
Tempat asal Guangdong, Cina
Nama merek KCO, Kocent Optec Limited
Sertifikasi ISO9001, RoHS
Nomor model KCO-GYXTW-xA1
Kuantitas min Order Perundingan
Harga negotiable
Kemasan rincian gulungan kayu, palet kayu
Waktu pengiriman 3 ~ 5 hari setelah menerima pembayaran
Syarat-syarat pembayaran Western Union, T/T, l/c
Menyediakan kemampuan 10.000 km/ bulan

Hubungi saya untuk sampel gratis dan kupon.

ada apa:0086 18588475571

Wechat wechat: 0086 18588475571

Skype: sales10@aixton.com

Jika Anda memiliki masalah, kami menyediakan bantuan online 24 jam.

x
Detail produk
Bahan PE, LDPE, HDPE Nama Kabel serat optik luar ruangan
Panjang 2km~5km setiap putaran Jenis kabel Gyta
Serat Mode tunggal G652D Core 2 core hingga 96 core
Warna Hitam Diameter 9.0mm
Nomor bagian GYTA-xA1
Tinggalkan pesan
Deskripsi Produk

GYTA  Loose Tube Armored Outdoor Fiber Optical Cable For Duct

1. What is GYTA fiber optic cable?

  • GYTA fiber optic cable is an outdoor, loose-tube fiber optic cable with aluminum tape armor, making it suitable for aerial and duct installations where corrosion and moisture resistance are important.
  • The name breaks down as:

"GY" for outdoor

"T" for filled structure,

"A" for the aluminum-polyethylene bonded sheath that provides moisture barrier and mechanical protection.

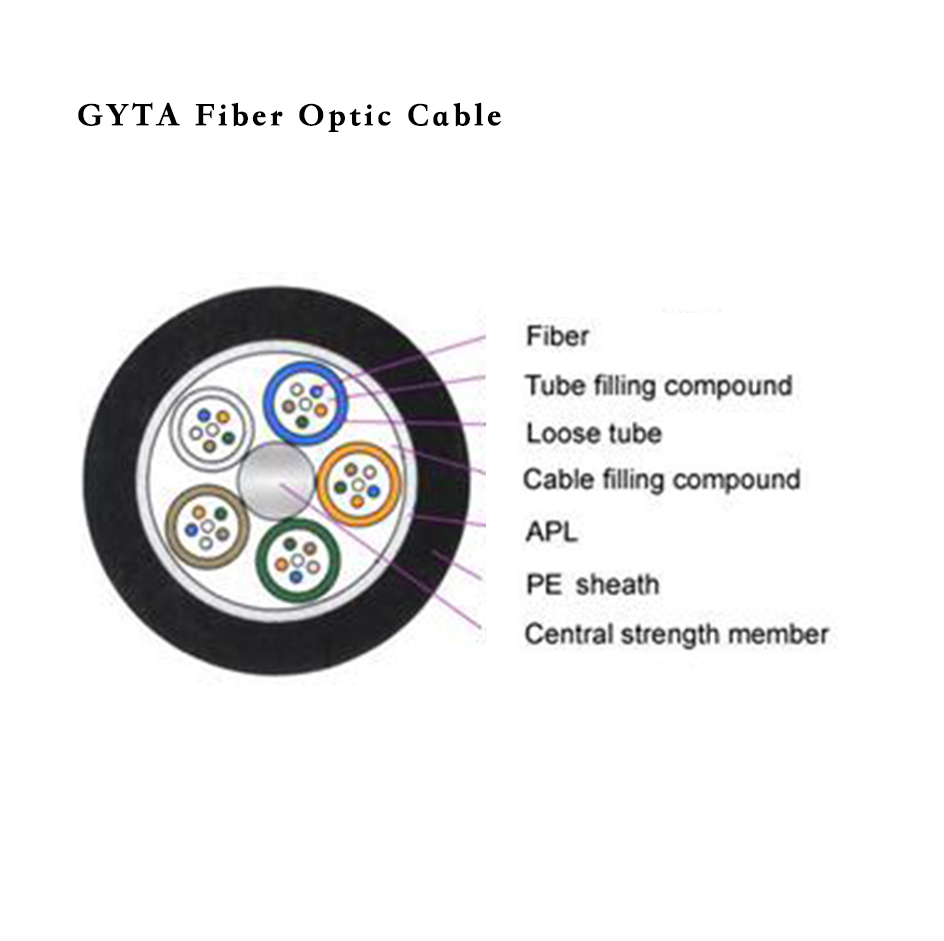

2. Construction:

GYTA Loose Tube Armored Outdoor Fiber Optical Cable For Duct 0

3. Characteristics:

  • Good mechanical and temperature performance
  • High strength loose tube that is hydrolysis resistant
  • Special tube filling compound ensure a critical protection of fiber
  • Specially designed compact structure is good at preventing loose tubes from shrinking
  • PE sheath protects cable from ultraviolet radiation
  • The following measures are taken to ensure the cable watertight
  • Steel wire used as the central strength member
  • Loose tube filling compound

4. Standard

  • Complies with Standard YD/T 1155-2001 as well as IEC 60794-1.

5. Cable Mechanical Characteristic

Cable Type

Fiber Count

Tubes

Fillers

Cable Diameter

mm

Cable Weight kg/km

Tensile Strength

Long/Short Term N

Crush Resistance

Long/Short Term

N/100mm

Bending Radius

Static
/Dynamic

mm

GYTA-2~12

8~12

1

4

9.0±0.5

100

1000/3000

1000/3000

10D/20D

GYTA-14~18

14~18

3

2

9.0±0.5

100

1000/3000

1000/3000

10D/20D

GYTA-20~24

20~24

4

1

9.5±0.5

110

1000/3000

1000/3000

10D/20D

GYTA-26~36

26~36

4

1

9.5±0.5

120

1000/3000

1000/3000

10D/20D

GYTA-38~48

38~48

4

1

10.0±0.5

140

1000/3000

1000/3000

10D/20D

GYTA-50~60

50~60

5

0

10.8±0.5

150

1000/3000

1000/3000

10D/20D

GYTA-62~72

62~72

6

0

11.9±0.5

170

1000/3000

1000/3000

10D/20D

GYTA-74~84

74~84

7

1

12.5±0.5

180

1000/3000

1000/3000

10D/20D

GYTA-86~96

86~96

8

0

13.6±0.5

210

1000/3000

1000/3000

10D/20D

GYTA-98~108

98~108

9

1

14.5±0.5

230

1000/3000

1000/3000

10D/20D

GYTA-110~120

110~120

10

0

14.8±0.5

240

1000/3000

1000/3000

10D/20D

GYTS-122~144

122~132

11

1

15.4±0.5

260

1000/3000

1000/3000

10D/20D

GYTA-146~216

146~216

12

0

19.8±0.5

395

1000/3000

1000/3000

10D/20D

GYTA-218~288

218~288

12

0

20.8±0.5

470

1000/3000

1000/3000

10D/20D

6. Fiber characteristic

Fiber style Unit MM
Condition nm 850/1300
Attenuation dB/km ≤3.0/1.0


----
Dispersion 1550nm Ps/(nm*km) Dispersion

1625nm Ps/(nm*km) 　
Bandwidth 850nm MHZ.KM Bandwidth

1300nm MHZ.KM 　
Zero dispersion wavelength nm ≧ 1295, ≤1320
Zero dispersion slope nm ----
PMD Maximum Individual Fiber
≤0.11
PMD Design Link Value Ps(nm2*km) ----
Fibre cutoff wavelength λc nm ----
Cable cutoff wavelength λcc nm ----
MFD 1310nm um ----

1550nm um ----
Numerical Aperture(NA)
0.200+/-0.015
Step(mean of bidirectional measurement) dB ≤0.10
Irregularities over fiber length and point dB ≤0.10

7. Fiber color

1 2 3 4 5 6
Blue Orange Green Brown Grey White
7 8 9 10 11 12
Red Black Yellow Violet Pink Aqua

OEM/ODM Service:

If you want to show your own brand LOGO on the goods such as cable, package bag, label or any where. It is no any problem. Our OEM and ODM service is always ready to do it.

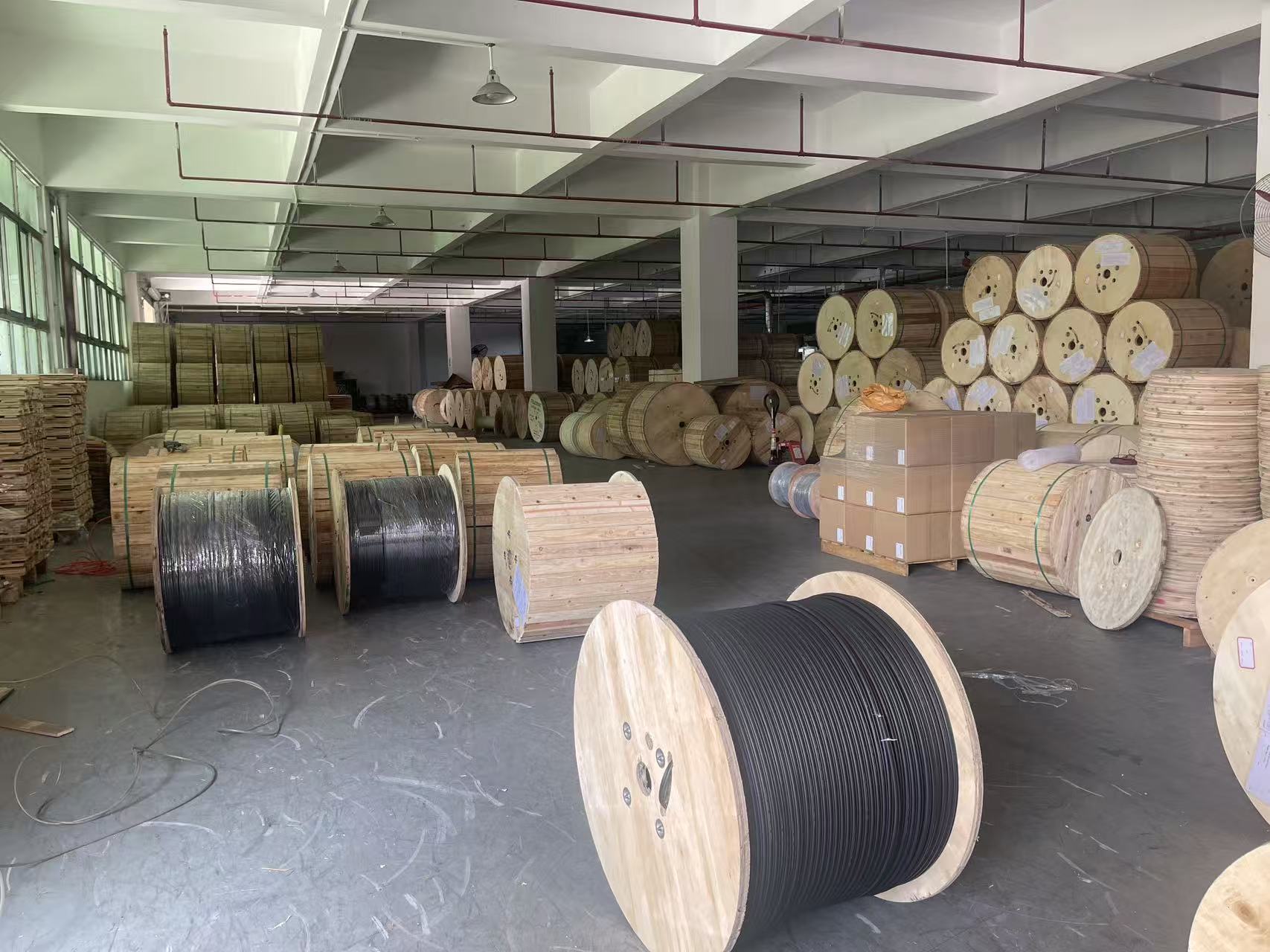

Packing:

According to Stardard Export Packing.

Carton box, wooden box, wooden pallet.

Shipping:

  • International express such as UPS, TNT, DHL, etc
  • Internatioal air: CA, AA, EA, etc
  • By sea
