8cores 8fibers 8fo Armored OM3 50/125 Multimode GYTXW Aerial Outdoor Fiber Optical Cable
| Tempat asal | Guangdong, Tiongkok |
|---|---|
| Nama merek | KCO, Kocent Optec Limited |
| Sertifikasi | ISO9001, RoHS |
| Nomor model | KCO-GYXTW-6b1 |
| Kuantitas min Order | 1000M |
| Harga | negotiable |
| Kemasan rincian | gulungan kayu, palet kayu |
| Waktu pengiriman | 2 ~ 5 hari setelah mendapatkan pembayaran |
| Syarat-syarat pembayaran | Western Union,T/T,L/C |
| Menyediakan kemampuan | 10.000 km/ bulan |
Detail produk
| Bahan | PE, LDPE, HDPE | Nama | kabel serat optik luar ruangan |
|---|---|---|---|
| Panjang | 2km~3km setiap putaran | Jenis Kabel | Gyxtw |
| Serat | Mode tunggal G652D | Inti | 6 serat |
| Warna | Hitam | Diameter | 7.0mm ± 0,3 |
| Nomor Bagian | GYXTW-6b1 | ||
| Menyoroti | 8cores armored OM3 fiber cable,outdoor aerial multimode optical cable,GYTXW 50/125 fiber optic cable |
||
Deskripsi Produk
8cores 8fibers 8fo Armored OM3 50/125 Multimode GYTXW Aerial Outdoor Fiber Optical Cable
1. What is GYTXW Aerial Outdoor Fiber Optical Cable?
- GYTXW Aerial Outdoor Fiber Optical Cable cables feature central loose tube wrapped with a layer of PSP longitudinally, excellent crush-resistant performance. Two parallel steel wires are placed at the two sides of the steel tape, to ensure tensile strength.
- GYTXW Aerial Outdoor Fiber Optical Cable is completed with a single polyethylene (PE) sheath. This is suitable for aerial or duct environment for communication between bureaus, metropolitan network, access network.
- GYTXW Aerial Outdoor Fiber Optical Cable is water proof, small diameter (can do 6.0mm, 6.5mm, 7.0mm and 8.0mm) and light weight.
- GYTXW Aerial Outdoor Fiber Optical Cable is suitable for outdoor application such as aerial, duct or direct burial of digital transmission communication systems.
- The structure of GYTXW Aerial Outdoor Fiber Optical Cable:
Central Loose Tube: Contains 2 to 24 colored optical fibers (singlemode or multimode as customer request) surrounded by a water-resistant filling gel to prevent moisture ingress.
Armoring layer: A layer of corrugated steel tape (PSP) is wrapped longitudinally around the central tube, providing excellent crush resistance and protection against rodents.
Strength Members: Two parallel steel wires are embedded on opposite sides of the cable to ensure high tensile strength, which is critical for overhead hanging between poles.
Outer Sheath: A durable black Polyethylene (PE) jacket provides UV protection and environmental resistance.

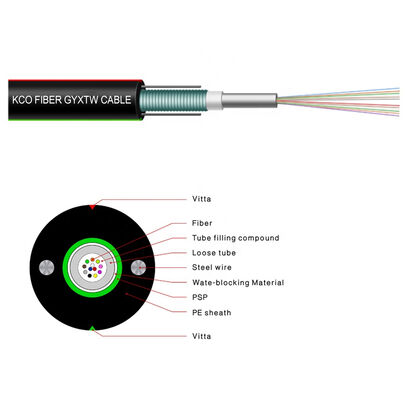

2. GYTXW Aerial Outdoor Fiber Optical Cable structure:
3. GYTXW Aerial Outdoor Fiber Optical Cable Technical Data:
|
Item |
Specification |
|
Cable type |
KCO GYXTW |
|
Application |
Outdoor (Aerial, duct, direct burial, etc) |
|
Fiber count |
8 fibers, 8 cores (8a1a) |
|
Fiber type |
Multimode OM3-150 or Multimode OM3-300 |
|
Cable Dia. |
7.0mm ± 0.3 (or customized) |
|
Cable out sheath |
HDPE (or customized) |
|
Strength member |
Steel wire |
|
Crush Resistance |
High (due to corrugated steel tape) |
|
Water Blocking |
Jelly-filled tube + water-blocking material |
4. GYTXW Aerial Outdoor Fiber Optical Cable Applications:
+ FTTx (FTTH, FTTA, FTTB, FTTR, FTTO, etc)
+ LAN, WAN
+ CATV
+ Metro
+ Data center
+ Passive Fiber Optic Network
+ Lab Test
5. GYTXW Aerial Outdoor Fiber Optical Cable Mechanical Characteristic:
| Fiber number | Cable diameter | Weight | ||||
| 1~24 |
|
|||||
| Temperature range | -40°C to +70°C | |||||
| Min Bending Radius(mm) | Long term | 10D | ||||
| Min Bending Radius(mm) | Short term | 20D | ||||
| Min allowable Tensile Strength(N) | Long term | 1200 | ||||
| Min allowable Tensile Strength(N) | Short term | 1500 | ||||
| Operation temperature | -40°C+70°C | |||||
| Installation temperature | -20°C+60°C | |||||
| Storage temperature | -40°C+70°C | |||||
6. Fiber color:
| 1 | 2 | 3 | 4 | 5 | 6 |
| Blue | Orange | Green | Brown | Grey | White |
| 7 | 8 | 9 | 10 | 11 | 12 |
| Red | Black | Yellow | Violet | Pink | Aqua |
KCO Fiber OEM/ODM Service:
If you want to display your own brand LOGO on the goods such as cable, package bag, label or any where. It is no any problem. Our OEM and ODM service is always ready to do it.
Packing:
According to Stardard Export Packing.
Carton box, wooden box, wooden pallet.
Shipping:
- International express such as UPS, TNT, DHL, etc
- Internatioal air: CA, AA, EA, etc
- By sea
