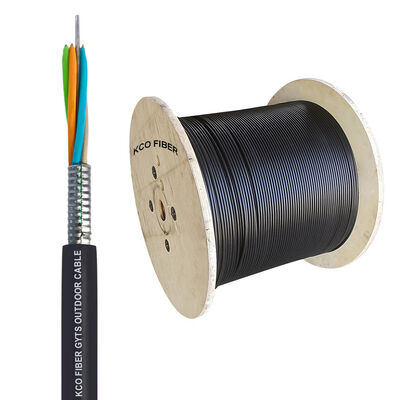

96fo 96 Cores 96fibers Single Mode GYTS Armored Optical Fiber Cable For Out Plant Aerial and Duct

  • 96fo 96 Cores 96fibers Single Mode GYTS Armored Optical Fiber Cable For Out Plant Aerial and Duct
  • 96fo 96 Cores 96fibers Single Mode GYTS Armored Optical Fiber Cable For Out Plant Aerial and Duct
  • 96fo 96 Cores 96fibers Single Mode GYTS Armored Optical Fiber Cable For Out Plant Aerial and Duct
  • 96fo 96 Cores 96fibers Single Mode GYTS Armored Optical Fiber Cable For Out Plant Aerial and Duct
Tempat asal Guangdong, Tiongkok
Nama merek KCO, Kocent Optec Limited
Sertifikasi ISO9001, RoHS
Nomor model KCO-GYXTW-xA1
Kuantitas min Order Perundingan
Harga negotiable
Kemasan rincian gulungan kayu, palet kayu
Waktu pengiriman 3 ~ 5 hari setelah menerima pembayaran
Syarat-syarat pembayaran Western Union,T/T,L/C
Menyediakan kemampuan 10.000 km/ bulan
Detail produk
Bahan PE, LDPE, HDPE Nama kabel serat optik luar ruangan
Panjang 2km~3km setiap putaran Jenis Kabel Gyxtw
Serat Multimode OM2 50/125 Inti 2 inti hingga 24 core
Warna Hitam Diameter 7.0mm
Nomor Bagian Gyxtw-xa1
Menyoroti

96 cores single mode armored fiber cable

,

GYTS optical fiber cable for outdoor

,

96 fibers duct aerial fiber cable
Tinggalkan pesan
Deskripsi Produk
96fo 96 Cores 96fibers Single Mode GYTS Armored Optical Fiber Cable For Out Plant Aerial and Duct
1. What is GYTS armored optical fiber cable?
  • The GYTS armored optical cable is a robust and highly reliable solution designed specifically for outdoor duct and aerial installations.
  • The "GYTS" designation refers to its specific construction: an outdoor-use cable (GY) with a gel-filled loose tube (T) design, protected by a layer of corrugated steel tape armor (S) and finished with a durable polyethylene (PE) outer jacket.
  • In the GYTS armored optical diber cable, single-mode or multimode fibers are positioned in the loose tubes, the tubes are filled with water blocking filling compound. Tubes and fillers are stranded around the strength member into a circular cable core. The steel tape PSP is applied around the core. Which is filled with the filling compound to protect it. And then the cable is completed with a PE sheath.
  • The GYTS armored optical fiber cable is available in 2 cores till 288 cores. Typical fiber type use Single Mode G652D. Other type of fiber can make as customer request.

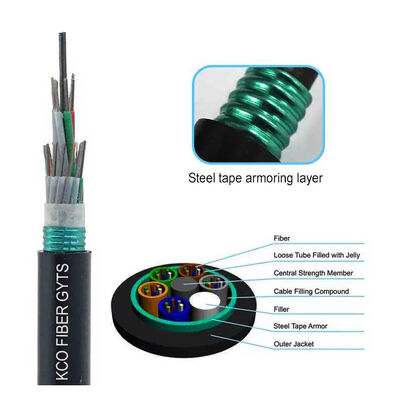

2. GYTS outdoor cable structure:
96fo 96 Cores 96fibers Single Mode GYTS Armored Optical Fiber Cable For Out Plant Aerial and Duct 0
3. GYTS outdoor cable application:
  • Passive fiber optic network
  • FTTx system such as FTTH, FTTB, FTTA, FTTO, FTTR, etc
  • LAN/WAN system
  • CCTV system
  • xPON system
4. Standard
  • Complies with Standard YD/T 1155-2001 as well as IEC 60794-1.
5. GYTS armored optical fiber cable specification:
Cable Type Fiber Count Cable Diameter MM Cable Weight KG/KM Tensile Strength Long/Short Term N Crush Resistance Long/Short Term N/100MM Bending Radius Static/Dynamic MM
KCO-GYTS2-30 2~30 8.5 65 600 1500 300 1000 10D/20D
KCO-GYTS2-36 32~36 9.4 70 600 1500 300 1000 10D/20D
KCO-GYTS38-60 38~60 9.5 85 600 1500 300 1000 10D/20D
KCO-GYTS62-72 62~72 10 105 600 1500 300 1000 10D/20D
KCO-GYTS74-96 74~96 11.9 130 600 1500 300 1000 10D/20D
KCO-GYTS98-120 98~120 14.4 190 600 1500 300 1000 10D/20D
KCO-GYTS122-144 122~144 14.6 200 600 1500 300 1000 10D/20D
KCO-GYTS146-288 146~288 16.5 245 600 1500 300 1000 10D/20D
6. Fiber characteristic
G.652 G.655 50/125μm 62.5/125μm
Attenuation (+20℃) @850nm ≤3.0 dB/km ≤3.0 dB/km
@1300nm ≤1.0 dB/km ≤1.0 dB/km
@1310nm ≤0.36 dB/km ≤0.40 dB/km
@1550nm ≤0.22 dB/km ≤0.23dB/km
Bandwidth (Class A) @850nm ≥500 MHz·km ≥200 MHz·km
@1300nm ≥1000 MHz·km ≥600 MHz·km
Numerical Aperture 0.200±0.015NA 0.275±0.015NA
Cable Cut-off Wavelength λcc ≤1260nm ≤1480nm
7. Fiber and loose tube color
1 2 3 4 5 6
Blue Orange Green Brown Grey White
7 8 9 10 11 12
Red Black Yellow Violet Pink Aqua

96fo 96 Cores 96fibers Single Mode GYTS Armored Optical Fiber Cable For Out Plant Aerial and Duct 1

KCO Fiber OEM/ODM Service:

If you want to show your own brand LOGO on the goods such as cable, package bag, label or any where. It is no any problem. Our OEM and ODM service is always ready to do it.

96fo 96 Cores 96fibers Single Mode GYTS Armored Optical Fiber Cable For Out Plant Aerial and Duct 2

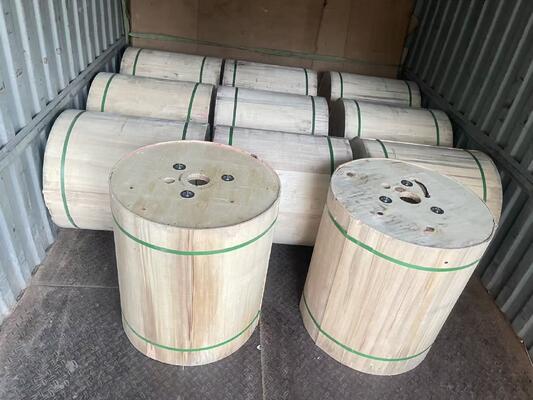

Packing:

According to Stardard Export Packing.

Carton box, wooden box, wooden pallet.

Shipping:
  • International express such as UPS, TNT, DHL, etc
  • Internatioal air: CA, AA, EA, etc
  • By sea
