12F SM G657A1 MPO-12 3.0mm Optical Fiber Patch Cable MTP-12 Female Fiber Trunk Cable Type B

Tempat asal	Guangdong, Tiongkok
Nama merek	KCO
Sertifikasi	ISO9001, RoHS
Nomor model	MPOA-MPOA-12fo-LSZH-xM
Kuantitas min Order	perundingan
Harga	negotiable
Kemasan rincian	Tas PE, kotak karton, gulungan kayu
Waktu pengiriman	2 ~ 5 hari setelah mendapatkan pembayaran
Syarat-syarat pembayaran	Western Union,T/T,L/C

Detail produk

Konektor	MPO/APC	Serat	OS1
Menutupi	PVC, LSZH	Kerugian Penyisipan	0.2db
Kembali Kerugian	55db	Diameter	2.0mm, 3.0mm
Panjang	1, 3, 5, 7, 10, 15, 20, ...	Inti	9/125
Jumlah serat	8 serat, 12 serat, 24 serat	Warna	Kuning

Tinggalkan pesan

Deskripsi Produk

12F SM G657A1 MPO-12 3.0mm Optical Fiber Patch Cable MTP-12 Female Fiber Trunk Cable Type B

Description:

KCO Fiber factory directly sell MPO Patch Cable, MTP Trunk Cable

MPO patch cables / MTP Trunk Cables are high-density fiber optic cables that used for fast data networks. It uses a Multi-fiber Push-On connector to link many fibers at once.

MPO patch cables / MTP trunk cables connect racks together. They use MPO / MTP connectors on both ends of cable.

High Fiber Count: One connector holds 8F, 12F, 16F, 24F, 32F, even 48F.

Space Saver: It reduces cable clutter in crowded server racks.

Fast Speeds: It supports high network speeds like 40G, 100G, and 400G.

12F SM G657A1 MPO-12 3.0mm Optical Fiber Patch Cable MTP-12 Female Fiber Trunk Cable Type B Detail information:

Connector side A: MPO female / MTP female

Connector side B: MPO female / MTP female

Fiber type: Single mode G657A1

Fibe count: 12F

Cable diameter: 3.0mm

Cable out-sheath material: LSZH

Cable color: yellow

Cable length: 1m, 3m, 5m, 10m, 15m, 25m, 50m, 75m, 100m, 150m, ...

Polarity: Type B (exwork, optional: type A, type C)

IL: Ultra Low Loss (0.35dB)

RL: 55dB

Application

High density big data center such as bank data center, telecom data center, icloud data center, ...
AI data center
Starlink data center
High speed telecommunication transmission
Telecommunication networks
Local Area Networks(LANs)
Data Processing networks
Test Equipment
Premise installations
Wide Area Networks(WANs).
FTTx (FTTH, FTTO, FTTB, FTTA, ...)
High speed transport data center such as metro, high-speed railway, light railway...

Features

Long Distance: They can send data over miles instead of feet.
Laser Light: They use powerful laser light sources instead of LEDs.
Yellow Jacket: They almost always have a bright yellow outer cable jacket.
Angled Connectors: They use green APC connectors to stop light from bouncing back.
Infinite Bandwidth: The glass fiber material has no theoretical limit on data speed.
100% factory tested before shipment.
Test report come with each piece.
OEM service: available

Product photos:

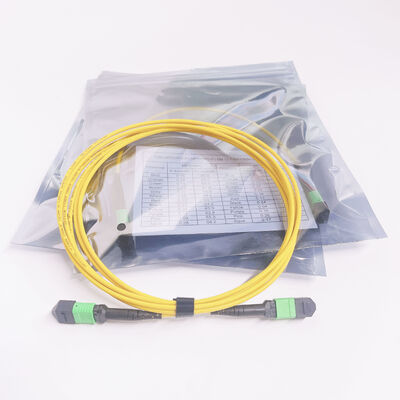

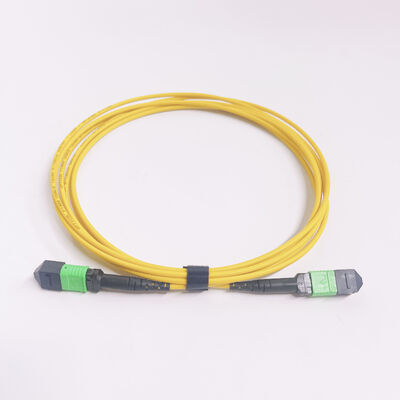

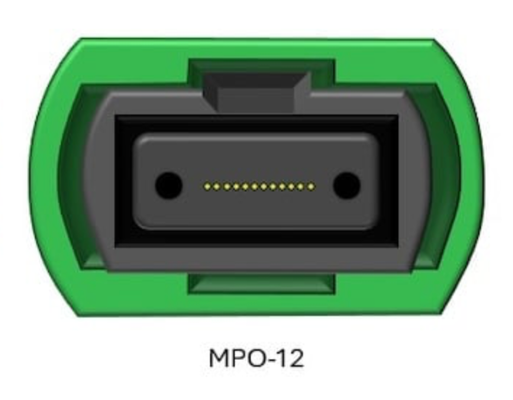

Single MPO MTP connector type
12F SM G657A1 MPO-12 3.0mm Optical Fiber Patch Cable MTP-12 Female Fiber Trunk Cable Type B 0

Multi MPO MTP connector type

About Single mode fiber SMF G657A1 type:

Single mode G657A1 fiber is a type of single-mode optical fiber designed to bend easily without losing its signal.

It is officially called a "bend-insensitive" fiber because it can handle tight turns around corners and inside small boxes.

Mode Field Diameter (MFD): 8.4 to 9.2 μm

Cladding Diameter: 125.0 ± 0.7 μm.

Wave length: 1310nm / 1550nm

Smaller radius bend:

10 mm Radius Bend: Wrapping the fiber one full turn around a 10 mm radius cylinder limits maximum signal loss to 0.75 dB at a light wavelength of 1550 nm. At 1625 nm, the maximum allowed loss is 1.5 dB.
15 mm Radius Bend: Wrapping the fiber 10 full turns around a roomier 15 mm radius limits maximum signal loss to 0.25 dB at 1550 nm and 1.0 dB at 1625 nm.

Light Wave Speeds: It transmits best at 1310 nm and 1550 nm light wavelengths.

High-speed transmision function: It easily carries modern data speeds of 100G, 400G, and 800G.

Long transmission distance: upto 120km

Specification:

Parameters	Standard Fiber Cable Assemblies
Fiber Type	SM(G.657A)
Jacket Materials	LSZH/OFNR/PVC
Connector Type	MPO APC female
Ferrule Materials	Glass-filled polyme
Testing Wavelengths	1310±30/1550±30nm
Insertion Losss IL (dB)	≤ 0.35dB (ultra low loss) ≤ 0.65dB (standard loss)
Return Loss RL (dB)	≥ 55dB(APC)
Exchangeability	≤ 0.2dB
Cable Assemblies	Trunk cable
Operating Temperature (° C)	-10~ + 70
Storage Temperature (° C)	-40 ~ +85
Package	1unit/bag
*All values specified are with connectors.

Polarity type B:

OEM/ODM Service:

If you want to show your own brand LOGO on the goods such as cable, package bag, label or any where. It is no any problem. Our OEM and ODM service is always ready to do it.

Packing:

According to Stardard Export Packing.

Carton box, wooden box, pallet.

Standard marking.

Shipping:

International express such as UPS, TNT, DHL, etc
Internatioal air: CA, AA, EA, etc
By sea
