2.0mm SM FBT Coupler Single Mode 1*2 Fused Fiber Optic Splitter With SC / UPC Connector

  • 2.0mm SM FBT Coupler Single Mode 1*2 Fused Fiber Optic Splitter With SC / UPC Connector
  • 2.0mm SM FBT Coupler Single Mode 1*2 Fused Fiber Optic Splitter With SC / UPC Connector
  • 2.0mm SM FBT Coupler Single Mode 1*2 Fused Fiber Optic Splitter With SC / UPC Connector
Place of Origin China
Nama merek KCO, Kocent Optec Limited
Sertifikasi iSO9001, RoHS
Model Number FBT-Dual-SCU-2.0
Minimum Order Quantity 1 pcs
Harga negotiable
Packaging Details plastic box
Delivery Time 3-5 days after get payment
Syarat-syarat pembayaran Western Union,T/T,L/C
Supply Ability 50000pcs/ week

Hubungi saya untuk sampel gratis dan kupon.

ada apa:0086 18588475571

Wechat wechat: 0086 18588475571

Skype: sales10@aixton.com

Jika Anda memiliki masalah, kami menyediakan bantuan online 24 jam.

x
Detail produk
Bahan kabel PVC, LSZH Panjang Kabel 1,0m
Diameter Kabel 2.0mm Konektor Terminal SC/UPC
Gelombang panjang 1310/1550nm Jenis FBT, Pemisah Serat Menyatu
Menyoroti

Planar Lightwave Circuit Splitter

,

ABS Box PLC Splitter
Tinggalkan pesan
Deskripsi Produk
2.0mm SM FBT Coupler Single Mode 1×2 Fused Fiber Optic Splitter With SC/UPC Connector
Quick Specifications
  • Product Name: Fiber Optic FBT Splitter
  • Cable Diameter: 2.0mm
  • Cable Length: 1.0m
  • Terminal Connector: SC/UPC
  • Split Ratio: 10/90 or custom configuration
  • Packaging: ABS box
Product Overview
Dual Window Wideband Couplers are high-quality components designed to divide or combine optical signals in fiber optic systems. These devices are manufactured using the fused bi-conical taper (FBT) process, ensuring reliable performance across a wide temperature range.
Operating at wavelengths of 1310nm and 1550nm with an 80nm passband, these couplers offer coupling ratios ranging from 1:99 to 50:50. Various packaging and pigtailing configurations are available to meet specific customer requirements.
Multimode couplers precisely divide light signals between two multimode fibers. These bi-directional components operate from 800nm to 1300nm and are available with standard 50/125μm or 62.5/125μm fiber. They can be assembled into miniature or ruggedized packages and terminated with industry-standard multimode connectors.
Applications
  • Telecommunications
  • Fiber in the Loop
  • Local Area Networks
  • CATV Systems
  • Fiber Optic Sensing
  • Test Instruments
Key Features
Low Insertion Loss
Low PDL
High Directivity
Long Haul Reliability
Custom Specifications Available
Product Image

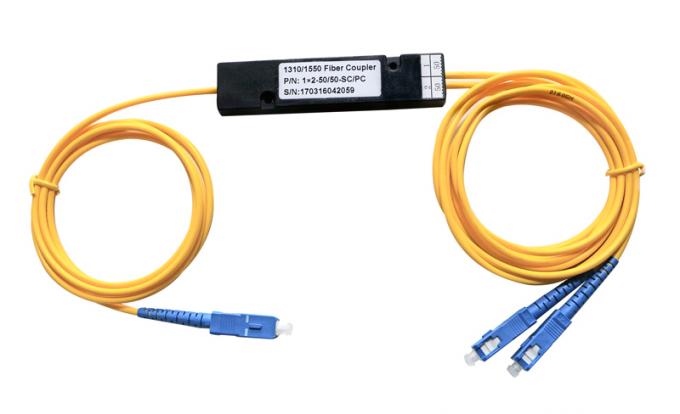

2.0mm SM FBT Coupler Single Mode 1×2 Fused Fiber Optic Splitter with SC/UPC connector
Technical Parameters
Parameter Unit Premium A B
Operating Wavelength nm 1310±40 and 1550±40
Excess Loss Typ. dB 0.15
Polarization Stability Max dB 0.15 0.15 0.2
Uniformity (50:50) Max dB 0.4 0.5 0.6
Thermal Stability Max dB 0.2 0.3 0.4
Directivity Min dB 50(1×2), 60(2×2)
Reflectance Min dB 50(1×2), 60(2×2)
Operating Temperature °C -30~85 -40~85
50/50 Max dB 3.4/3.4 3.6/3.6 3.7/3.7
40/60 dB 4.5/2.6 4.6/2.7 4.7/2.8
30/70 dB 5.8/1.85 5.9/1.9 6.0/2.0
20/80 dB 7.6/1.2 7.7/1.3 7.9/1.4
10/90 dB 10.8/0.65 11.0/0.7 11.1/0.8
1/99 dB 21.8/0.2 22.1/0.25 22.5/0.3
Additional Specifications (1×N Configuration)
Parameter Specification
Operating Wavelength Single Window, Dual, Three Window
Fiber Type Corning SMF-28e
OEM/ODM Services
We offer comprehensive OEM and ODM services. You can display your brand logo on cables, packaging bags, labels, or any other surface. Our team is ready to accommodate your custom branding requirements.
Packaging & Shipping
Packaging
  • Standard Export Packaging
  • Carton Box
  • Wooden Box
  • Wooden Pallet
Shipping Methods
  • International Express (UPS, TNT, DHL, etc.)
  • International Air (CA, AA, EA, etc.)
  • Sea Freight
